HDV01A

HDMI to VGA+R/L Audio Converter

Dear customer

Thank you for purchasing this product. For optimum performance and safely, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

1.0   INTRODUCTION

This kind of HDMI to VGA+R/L Audio Converter converts digital HDMI signal. It allows user to enjoy their high definition image and sound when watching movies or playing games on the traditional VGA monitors or projectors.

It offers solutions for digital entertainment center, DTV retail an show site, HDTV, STB, DVD and Projector factory, noise space and security concern, data center control, information distribution, conference room presentation, school and corporate training environments.

1.1 FEATURES

l         This HDMI converter has many features that enable it to perform in a superior manner. Among those features you will find:

l         Easy to Use: Install in seconds, no need of setting.

l         Conversion: It could convert complete HDMI into VGA video and R/L audio output.

l         Supports HDCP 1.2

l         Supports 165MHz/1.65gbps per Channel (6.75Gbps all channel) bandwidth for HDMI Input.

l         Supports Analogue Video output up to UXGA and 1080p with 10-bit DAC

2.0   SPECIFICATIONS

Signal inputs/Output
Input Video Signal	0.5-1.0 volts p-p
Input DDC Signal	5 volts p-p (TTL)
Input connection	HDMI A female(19pin)
Output connection	VGA, R/L
HDMI video input format	480i/576i/480p/576p/720p/1080i/1080p
VGA video output format	480i/576i/480p/576p/720p/1080i/1080p
Audio output format	2 channel LPCM
Operating Frequency
Vertical Frequency Range	50/60Hz
Input Video Amplifier Bandwidth	1.65Gpbs/165Hz
Mechanical
Size(W-H-D)	88mmW*25.5mmH*68mmD
Weight(Net)	0.68kg
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0℃ to +70℃
Operating Humidity	10% to 85% RH (no condensation)
Storage Temperature	-10℃ to +80℃
Storage Humidity	5% to 95% RH (no condensation)
Power Requirement
External Power Supply	5V DC@2A
Power consumption(Max)	5W
Regulatory Approvals
Converter Unit	FCC,CE
Power Supply	CE,FCC
Accessories Adapter
AC Power Adapter	US standard, UK standard and so on
User Adapter	English Version

Note: Specifications are subject to change without notice.

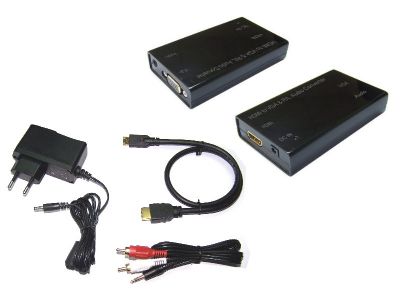

3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the package and make sure the following items are contained in the shipping carton:

l         Main unit

l         5V DC Power Supply

l         User’s Manual
