DPHA01A

CONVERTER

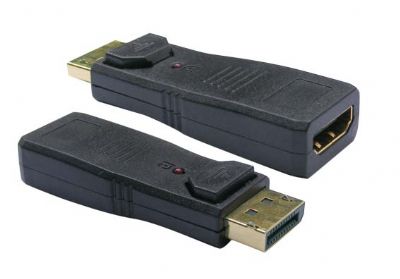

DP20 Male to HDMI 19 Female (With Audio Function)

Displayport+ AUDIO to HDMI adapter cable

The architecture incorporates Displayport receiver interface, Displayport transmitter interface HDMI transmitter interface, SPDIF, and I2S audio outputs.

1. Main Features

Upstream Connection (connected to source interface)

-Displayport 1.1a compliant

-Support of RBR or HBR transfer rates

-Link control via AUX CH

Downstream Connection(connected to HDMI Sink)

-HDMI 1.3A compliant

-HDCP 1.3 compliant

-Support up to 1080p and 1920*1200@60Hz

2. Applications

-TV and Monitors

-Set-Top Box

-PC/Handheld Device Docking Station

3. Cable color: white PVC

4. Test: 100% Test

5. Cable Length: 180±20MM
