PRODUCTS:[Device Accessories]PCI-E FIREWIERE800 |
|
| PRE. PAGE |
|
|
|
 |

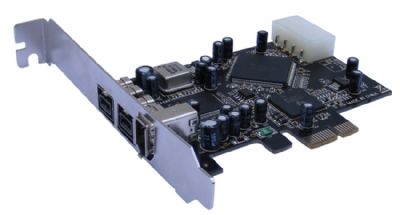

PRODUCT NAME:PCI-E FIREWIERE800 |
|
|
SPECIFICATION: |
|
|
PCI-e 1394b(firewier800)
chipset :xio2000+tsb82ab2+tsb81ab3)
- OHCI 1.0 and OHCI 1.2 Compliant
- Full x1 PCI Express throughput
- Two external 1394b ports and one external (1394a) port
- Supports data transfer rate up to 100/200/400/800 Mbps
- Fully supports IEEE 1394-1995 Standard and IEEE
- 1394a-2000 for high-performance
- Built-in 4-pin mini power supply connector as optional power to supply power hungry bus-powered devices
- Three TI chipset: PCI-Express Bridge chip, 1394b Link chip and 1394b PHY chip
- Supports up to 63 devices that can be run simultaneously on a System
- Supports PCI Express Base Specification Revision 1.0a
- Supports the Plug-and-Play Specification
|
|
|
