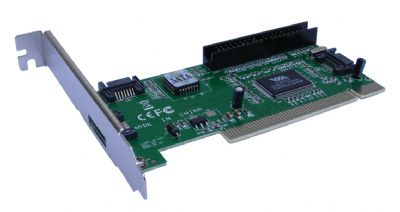

PCI SATAII RAID CARD 4PORTS

• Silicon Image SIK3124 Serial ATA(SATA2)host controller chipset
• Compatible to PCI specification
• Support PCI bus-master access
• Compliant with Serial ATAII specification.the extension of SATA1.0a Revision 1.1
• Compliant with Gen2i,Gen2m SATAII Electrical specification Revision 1.0
• Backward compatible to SATA1.0 specification
• Support 4 independent SATA 1.0 specification
• Support 4 independent SATA ports with data transfer rate at 3.0 Gb/s
• 256 Byte FIFO Per Port for Fast Read/Write Operation
• Support Native Command Queue(NCQ).Port Multipier,First Party DMA
• Support Plug & Play and Hot Plug
• RAID 0,1,5,10 JBOD function supported
• RAID function
• Supports software RAID 0(striped),RAID1(mirror).and RAID 0+1
• Supports co-exist RAID set and Non-RAID HDD
• Allows HDDs with different sizes to be configured in a RAID set
• Software monitoring utility
